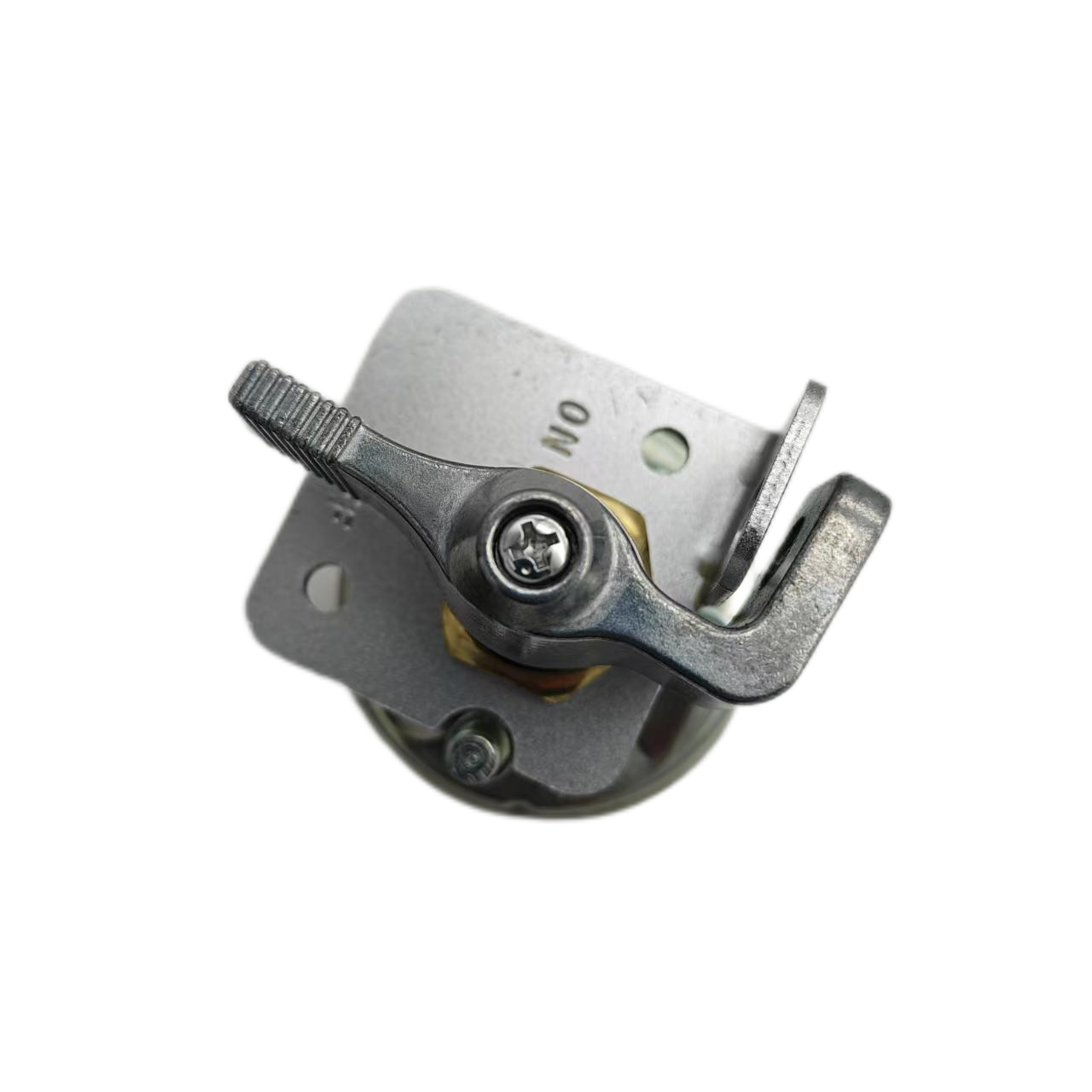

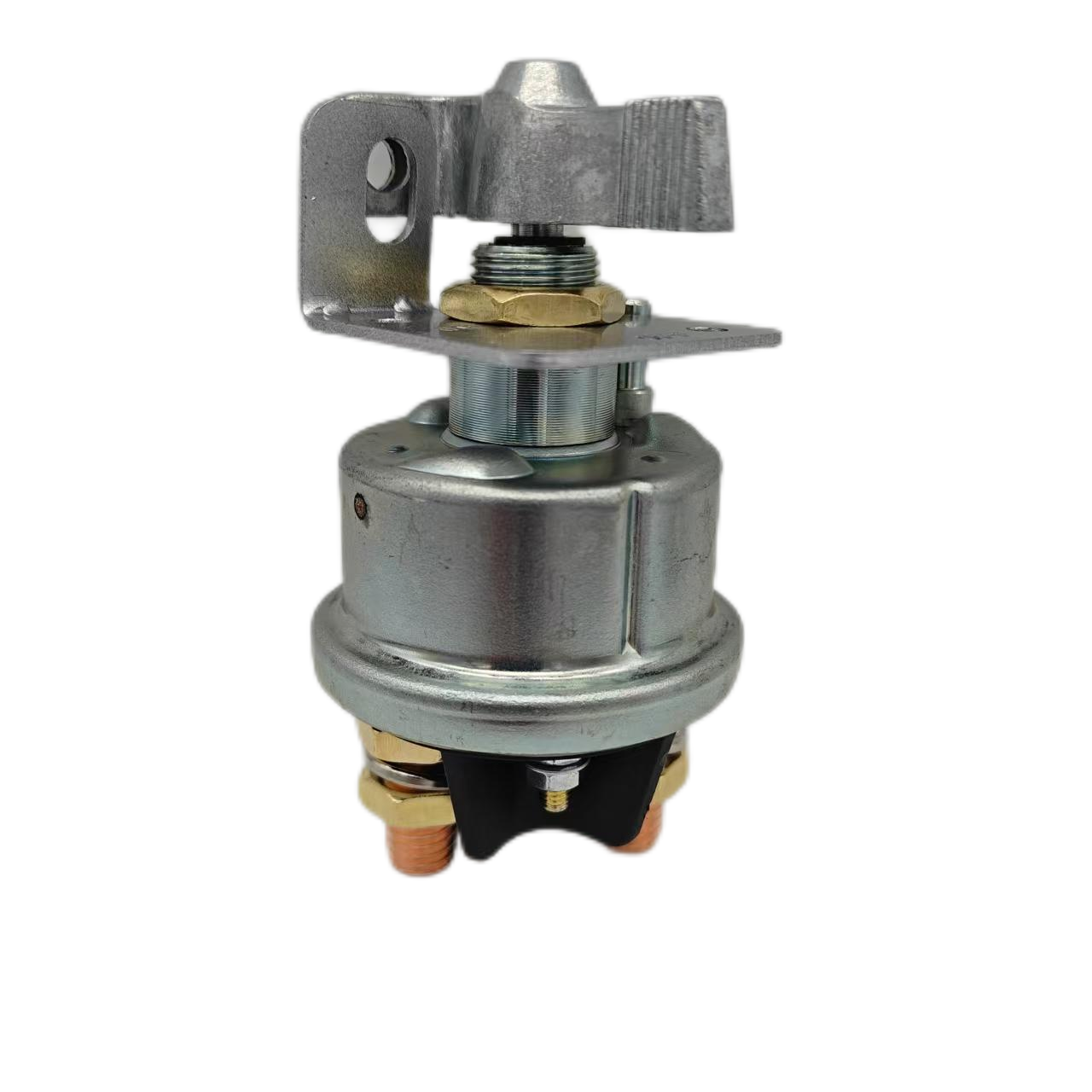

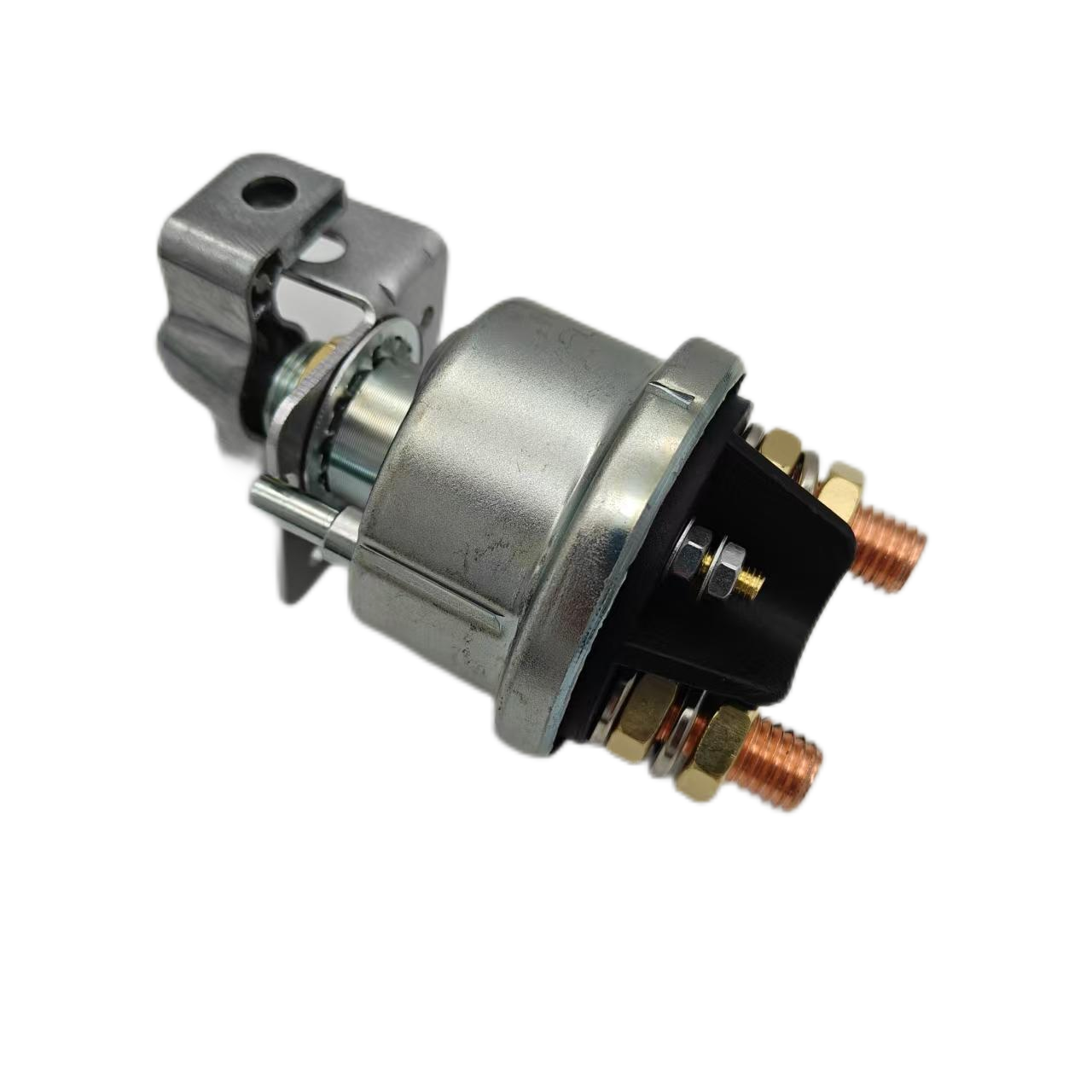

Cole Hersee 75907 Double Pole Switches Series Features & Benefits
Product ID : EL-75907
Product Attributes :
- Controls two systems, or it can be used to disconnect both positive and negative of the same circuit (which is required in some countries.)
- Contact ratings: 125A continuous, 750A intermittent.
- Silver contact surfaces. Epoxy-sealed and gasket-sealed.
- Both poles are separately insulated.
- Compatible with Littelfuse lock-out kits.

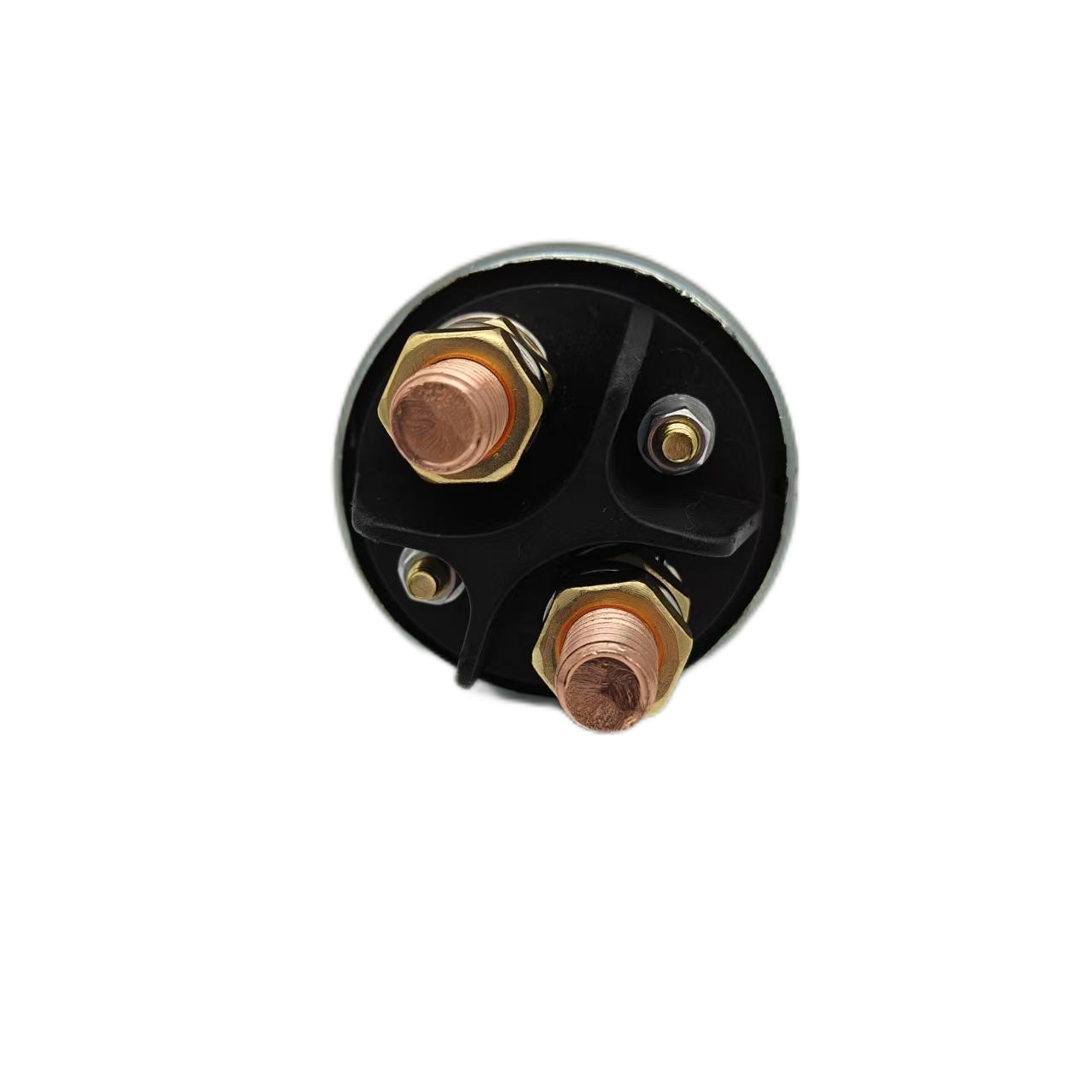

- Four 3/8” -24 stud terminals. Lockwasher and two brass hexnuts per stud are provided.
- 3/4” -16 thread. Fits panels up through 1/4” (6.4mm).
- O-ring seal in mounting stem; gasket seal at terminal insulator. Epoxy seal at case, mounting stem and locating pin.
- Heavy duty plated steel case
Product Description
| Details | Double Pole Off-On - Disconnects battery and field circuits |
| Contact Rating | 6-36V DC; Large studs-2000A intermittent 30 sec. On 3 min. Off; 300A continuous. Small studs-20A continuous |
| Actuator | Lever |
| Case | Plated Steel |
| Installation | 3/4inch through hole |
| Mounting Stem | 3/4 - 16 thread fits panel through 1/4 thick |
| Mounting Torque | 20ft lbs (27 Nm) |
| Stud Torque | 4.4 to 7.4 ft lbs (6-10Nm) |
| Operating Temperature | -40°C to +29°C |
