600A High Current Busbar 12-48V DC Heavy-Duty Nickel-Plated Copper Power Distribution Block 4xM10 (3/8
Product ID : EL-XL6004
Product Tags :
Busbar
Product Attributes :
| Current Rating | 600 Amps |
| Connector Type | Screw |
| Voltage | Max 48V DC |
| Busbar Material | Nickel-Plated Copper |
| Base Material | Flame Retardant ABS |
| Number of Terminal Studs | 4x3/8"(M10)Stud Terminal |
| Number of Terminal Screw | 8*#8(M4)Screw Terminal |

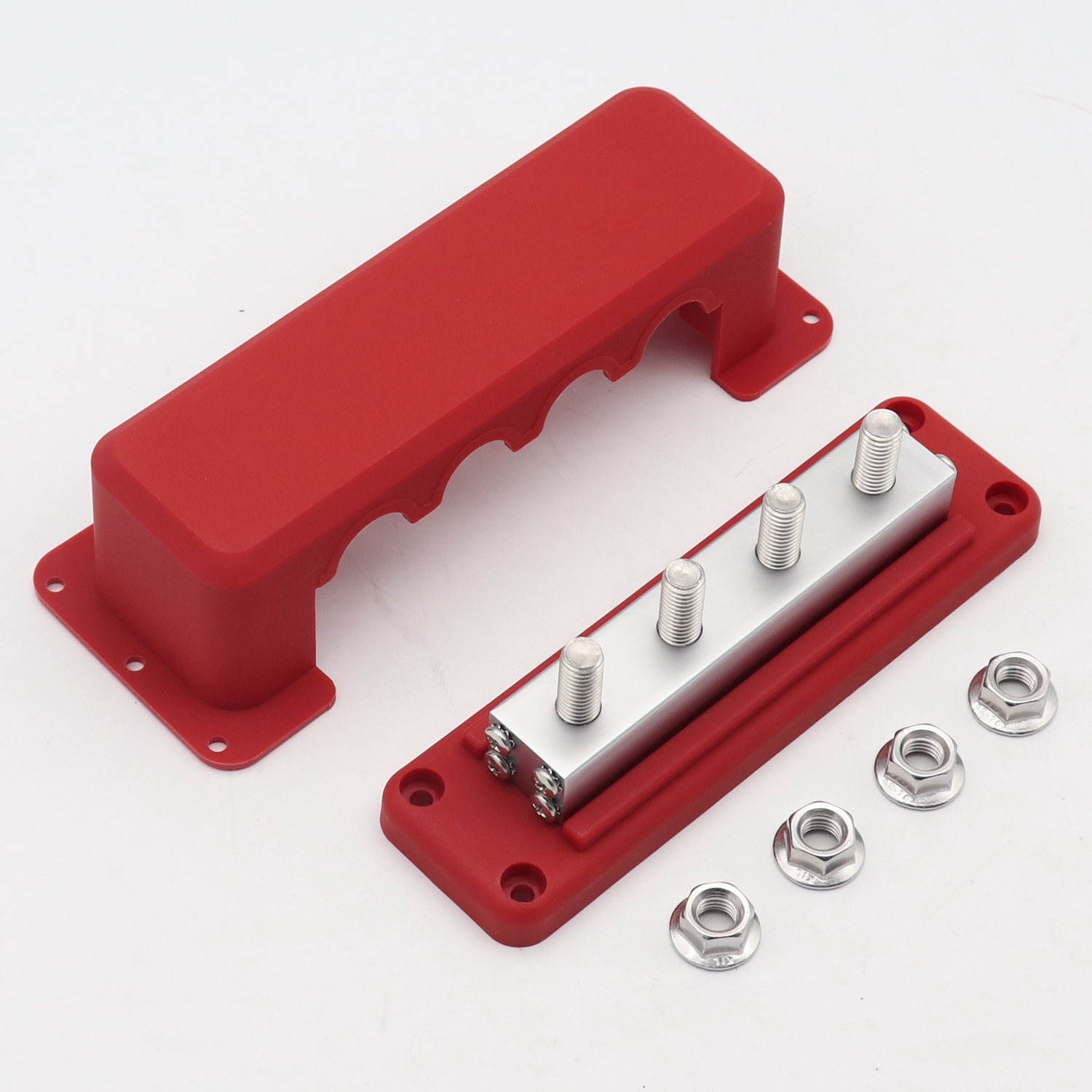

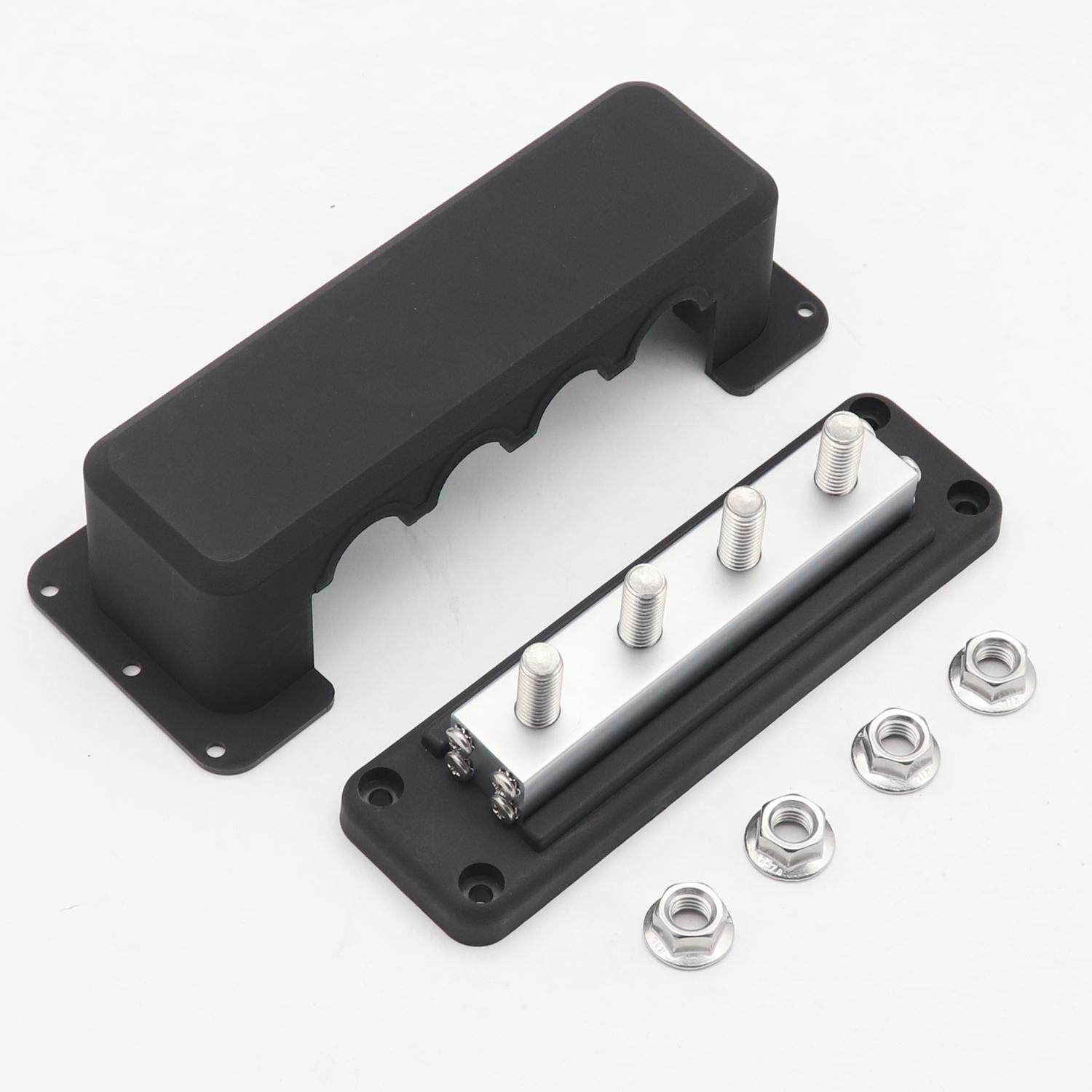

| Color | Positive Bus Bar - Red&Negative Bus Bar - Black |

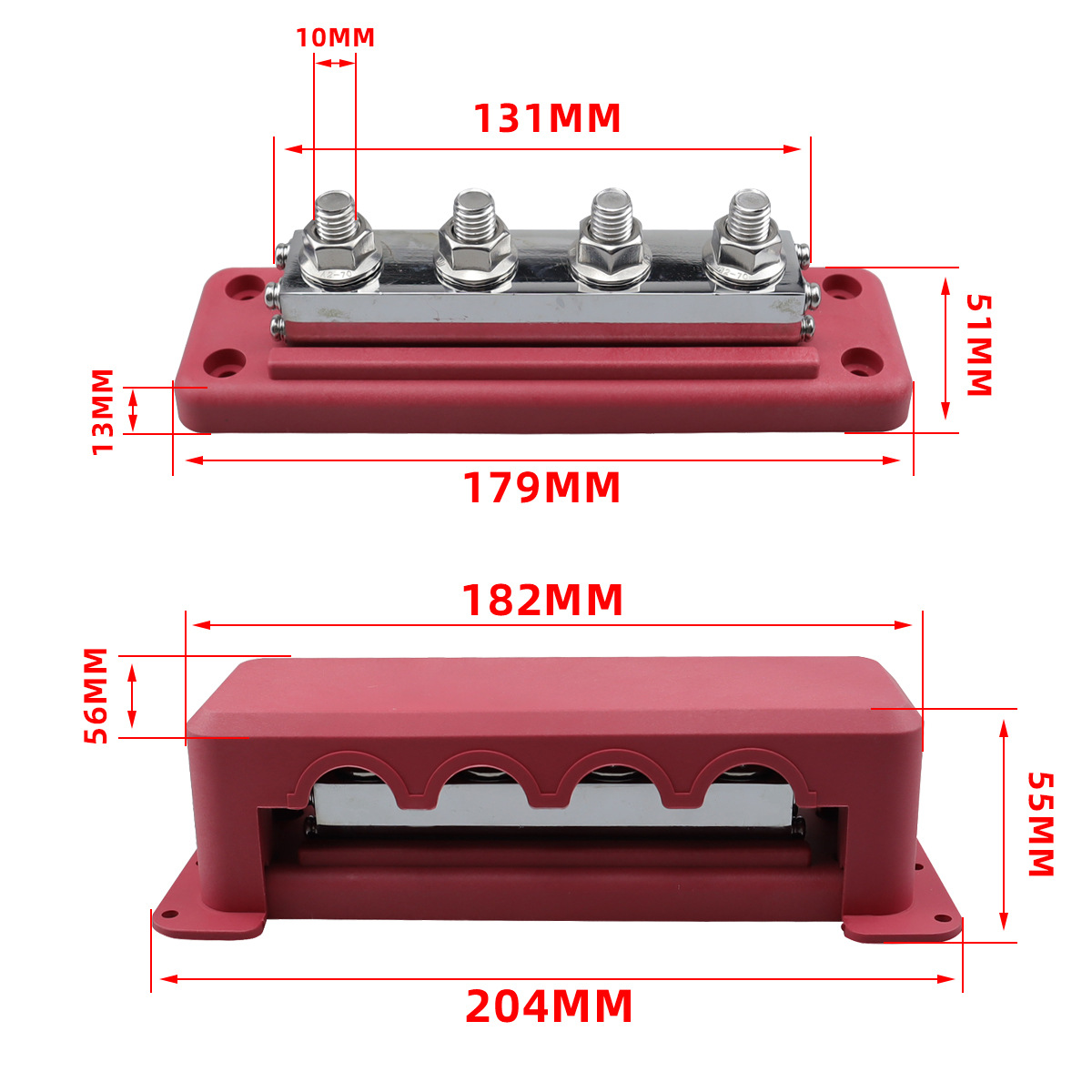

| Product Dimensions | 8.02x3.04x2.15inch (Including Upper Cover Size) |
| Note | Please allow 0-1 inch error due to manual measurement. Thanks for your understanding. |
Product Description
About this item
- Busbar: The 12V busbar features a high-power modular connection structure, which strengthens the electrical connections and facilitates assembly, providing a convenient solution for organizing and distributing power
- Features: The base and cover are made of flame-retardant nylon fiberglass reinforced material to ensure mechanical strength and durability, avoiding any external contact at the connections and preventing short circuits or damage
- Highly Conductive: The 19 mm/0.748 inch thick tinned copper distribution block is highly conductive, supporting up to 600 amps of continuous current and withstanding up to 300 volts AC or 48 volts DC

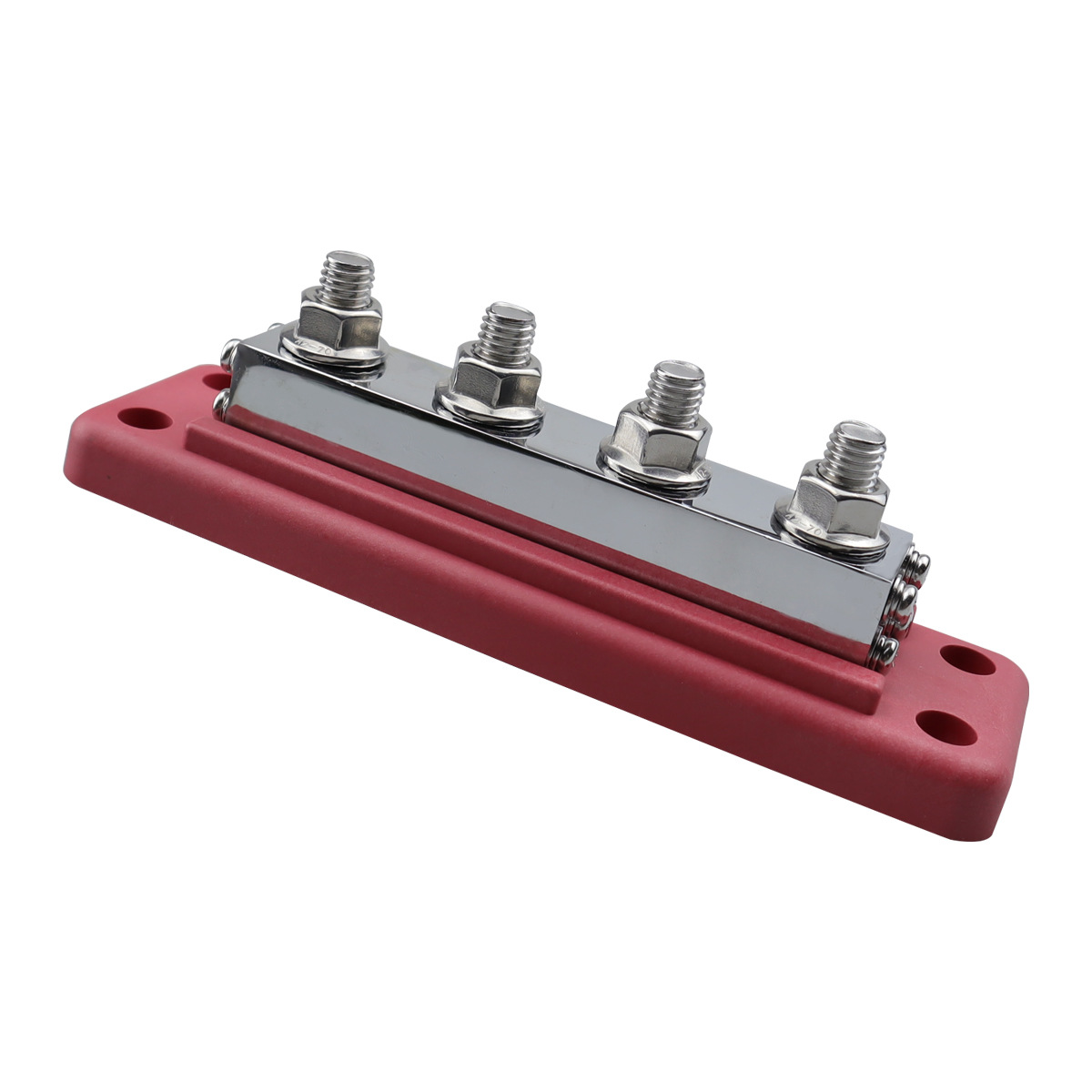

- Terminals: 600A busbar distribution block with 4 x M10 (3/8 inch) terminal studs (also suitable for M8) is ideal for multi-cell wiring configurations and the stainless steel material improves its corrosion and rust resistance
- Wide Application: 600A terminal busbar is equipped with 5mm mounting holes for mounting on a wide range of vehicles for cars, camping trailers, RVs, trucks, boats, yachts and other 12-48V applications
