PRODUCT

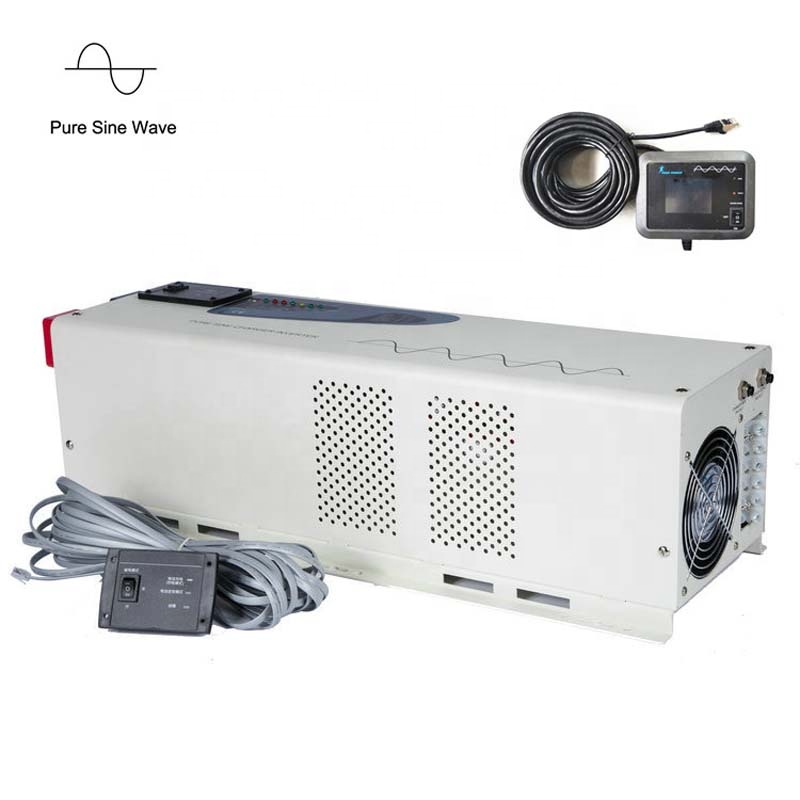

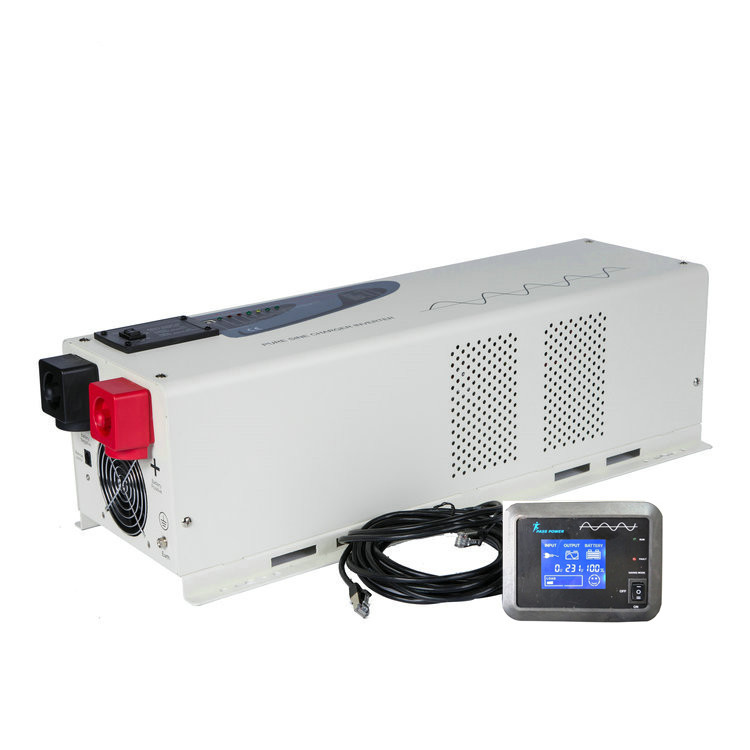

Technical data for 6000w low frequency power star w7 inverter inversor
|
Model |
PS6000-124 |
PS6000-148 |
PS6000-224 |
PS6000-248 |
|
Output power |
6000W |
|||
|
Impact power |
12000W |
|||
|
DC input voltage |
24VDC |
48VDC |
24VDC |
48VDC |
|
Output voltage |
100/110/120VAC±5% |
220/230/240VAC±3% |
||
|
Output frequency |
50/60HZ±0.5% |
|||
|
Output wave form |
Pure sine wave ( THD< 5 % ) |
|||
|
Power factor |
0.1~1 |
|||
|
Max efficiency |
90% |
|||
|
Standby power loss |
<10W( Saving power mode ) |
|||
|
Switching time |
<8ms |
|||
|
AC Input voltage range |
90~135VAC/190~245VAC |
|||
|
DC Input voltage range |
20.0~31.0 |
42.0~62.0 |
20.0~31.0 |
42.0~62.0 |
|
DC charging current |
75A |
45A |
75A |
50A |
|
Fault indication |
LED red |
|||
|
Remote switch (optional ) |
RJ11-LED or RJ45-LCD |
|||
|
Work temperature |
-20~50℃ |
|||
|
Workhumidity |
20~90%RH |
|||
|
Storage temperature |
-30~70℃ |
|||
|
Cooling |
Temperature controlled cooling fan |
|||
|
Weight(KG) |
44 |
|||
|
Size(mm) |
670*220*180(L*W*H) |
|||
|
Applications |
Car, yacht, solar energy systems, mobile devices, industrial control, power tools, Home Office and so on.
|
|||
